1000um S(M)A-S(M)A 905 OD6.0mm Gap-Design Fiber Optic Cable for High Power Laser Transmission and Laser Hair Removal Machine

1
MOQ
1000um S(M)A-S(M)A 905 OD6.0mm Gap-Design Fiber Optic Cable for High Power Laser Transmission and Laser Hair Removal Machine
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Διάμετρος πυρήνα ινών: 200μm, 300μm, 400μm, 600μm, 800μm
Διάμετρος επένδυσης: 500μm, 750μm
Διάμετρος επικάλυψης: 780μm, 1100μm
Υλικό πυρήνα: Καθαρός χαλαζίας (Low-OH)
Υλικό επένδυσης: Ντοπαρισμένο υλικό χαλαζία
Αριθμητικό άνοιγμα: 0,22
Δύο επενδύσεις ΝΑ: 0,37 ή 0,46
Λειτουργικό μήκος κύματος: 400-2400 nm
Μήκος καλωδίου: 3m, 5m, 10m, προσαρμόσιμο
Διάμετρος σωλήνα προστασίας: 8 mm
Τύπος ίνας: Fiber step-index (τυπική), Graded-index (κατόπιν αιτήματος)
Αποδοτικότητα μετάδοσης: > 90%
Ανώτατη δύναμη λέιζερ: 600W (μονής ίνας)
Τύπος σύνδεσης: D80 με ζαφείρι και διάκενο αέρα
Μπουφάν: Θωρακισμένος σωλήνας από ανοξείδωτο χάλυβα
Επισημαίνω:

1000um Fiber Optic Cable

,

S(M)A-S(M)A 905 High Power Laser Cable

,

OD6.0mm D80 Fiber Cable

Βασικές πληροφορίες
Τόπος καταγωγής: Guangdong, Κίνα
Μάρκα: Hicorpwell
Αριθμό μοντέλου: D80
Πληρωμής & Αποστολής Όροι
Περιγραφή προϊόντων
2M 1000um S(M)A-S(M)A 905 (OD6.0mm) Gap-Design Fiber Optic Cable for Laser Hair Removal Machine
Compatible with 4G, 3G, and Wi-Fi networks, this high-performance fiber optic cable delivers exceptional laser transmission for medical and industrial applications.
1000um S(M)A-S(M)A 905 OD6.0mm Gap-Design Fiber Optic Cable for High Power Laser Transmission and Laser Hair Removal Machine 0 1000um S(M)A-S(M)A 905 OD6.0mm Gap-Design Fiber Optic Cable for High Power Laser Transmission and Laser Hair Removal Machine 1
D80 Fiber Optic Cable Features

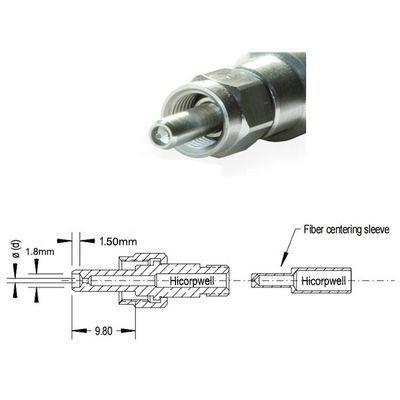

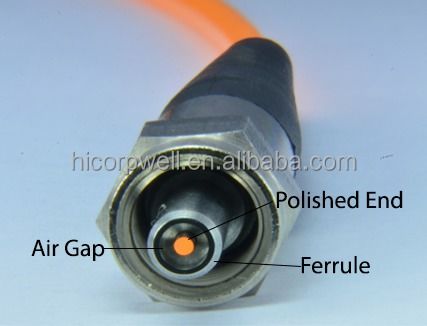

The Hicorpwell D80 fiber features precision ground end faces, large core diameter, air gap technology, and sapphire D80 connectors. Capable of transferring high power laser up to 600W through a single fiber with stable transmission efficiency exceeding 90%. The connector utilizes glue-free technology for improved heat dissipation and extended service life, meeting the demands of high-power applications like laser welding and cutting.
Product model(µm) ST200E ST300E ST400E ST600F
Core diameter(µm) 200 300 400 600
Cladding diameter(µm) 500 500 500 750
Coating diameter 780 780 780 1100
Core material Pure quartz (Low-OH)
Cladding material Doped quartz material
Numerical aperture(NA) 0.22
Two cladding numerical(NA) NA 0.37 OR NA 0.46
Operating wavelength(nm) 400-2400
Length(m) 3, 5, 10 (default length is 5 meters, customizable)
1000um S(M)A-S(M)A 905 OD6.0mm Gap-Design Fiber Optic Cable for High Power Laser Transmission and Laser Hair Removal Machine 2 1000um S(M)A-S(M)A 905 OD6.0mm Gap-Design Fiber Optic Cable for High Power Laser Transmission and Laser Hair Removal Machine 3 1000um S(M)A-S(M)A 905 OD6.0mm Gap-Design Fiber Optic Cable for High Power Laser Transmission and Laser Hair Removal Machine 4
Technical Specifications
Specification Details
Fiber Core Diameter (μm) 200, 300, 400, 600, 800
Fiber Core Material High purity fused silica (Low-OH)
Fiber Type Step-index fiber as standard; Graded-index fiber on request
Numerical Aperture (NA) 0.22 as standard, others on request
Operating Wavelength (nm) 400-2400
Protection Tube Diameter (mm) 8
Cable Lengths (m) 3, 5, 10, 20, etc. (customizable)
Key Features
  • Sapphire and Air Gap Protection
  • Precisely Polished D80 Fiber Connectors
  • Step-index Fiber Optimized for VIS-NIR
  • 0.22NA as Standard; Others on Request
  • High quality stainless steel jacket
  • Large core diameter for high power transmission
Applications
  • High power laser transmission
  • Laser welding and cutting
  • Laser marking
  • Atmospheric spectrum measurement
  • Laser cleaning
Frequently Asked Questions
Q1: Are you a trading company or manufacturer?
A: We are factory verified by TUV.
Q2: What is your delivery time?
A: Generally, sample: 3~5 working days. Formal order: 7-10 working days.
Q3: Do you provide OEM service?
A: Yes, we can print your logo or label on the products or on the box.
